Send and Cash Checks
This example shows how to:
- Send a check to transfer XRP or issued currency to another account.
- Get a list of checks you have sent or received.
- Cash a check received from another account.
- Cancel a check you have sent.
Checks offer another option for transferring funds between accounts. Checks have two particular advantages.
- You can use a check to send funds to another account without first creating a trust line - the trust line is created automatically when the receiver chooses to accept the funds.
- The receiver can choose to accept less than the full amount of the check. This allows you to authorize a maximum amount when the actual cost is not finalized.
Prerequisites
Clone or download the Modular Tutorial Samples{.github-code-download}.
Note: Without the Quickstart Samples, you will not be able to try the examples that follow.
Usage

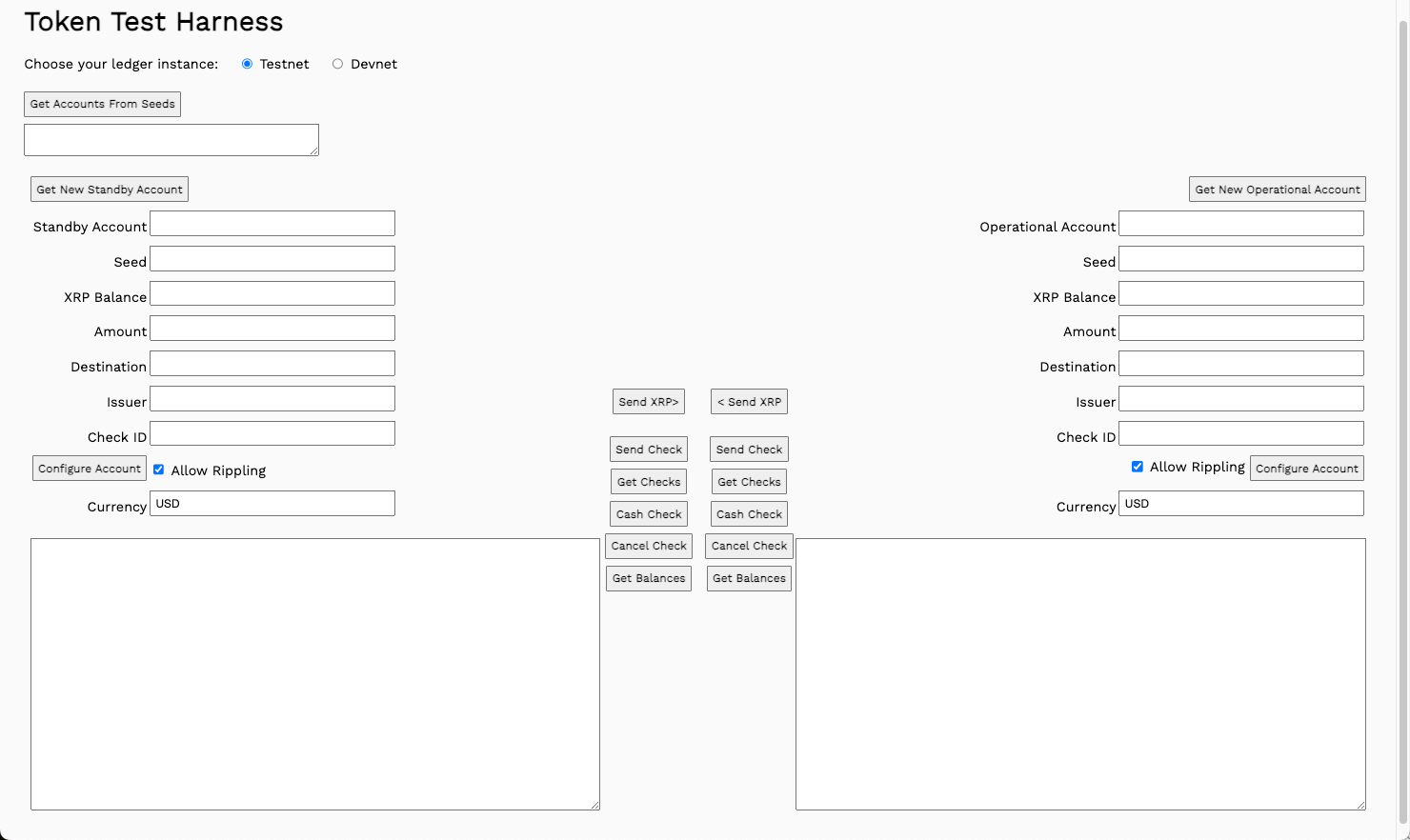

To get test accounts:
- Open and launch
10check.html. - Click Get Standby Account.
- Click Get Operational Account.
You can transfer XRP between your new accounts. Each account has its own fields and buttons.
Send a Check for XRP
To send a check for XRP from the Standby account to the Operational account:
- On the Standby (left) side of the form, enter the Amount of XRP to send, in drops.
- Copy and paste the Operational Account field to the Standby Destination field.
- Set the Currency to XRP.
- Click Send Check.
Send a Check for an Issued Currency
To send a check for an issued currency token from the Standby account to the Operational account:
- On the Standby side of the form, enter the Amount of currency to send.
- Copy and paste the Operational Account field to the Standby Destination field.
- Copy the Standby Account field and paste the value in the Issuer field.
- Enter the Currency code for your token.
- Click Send Check.

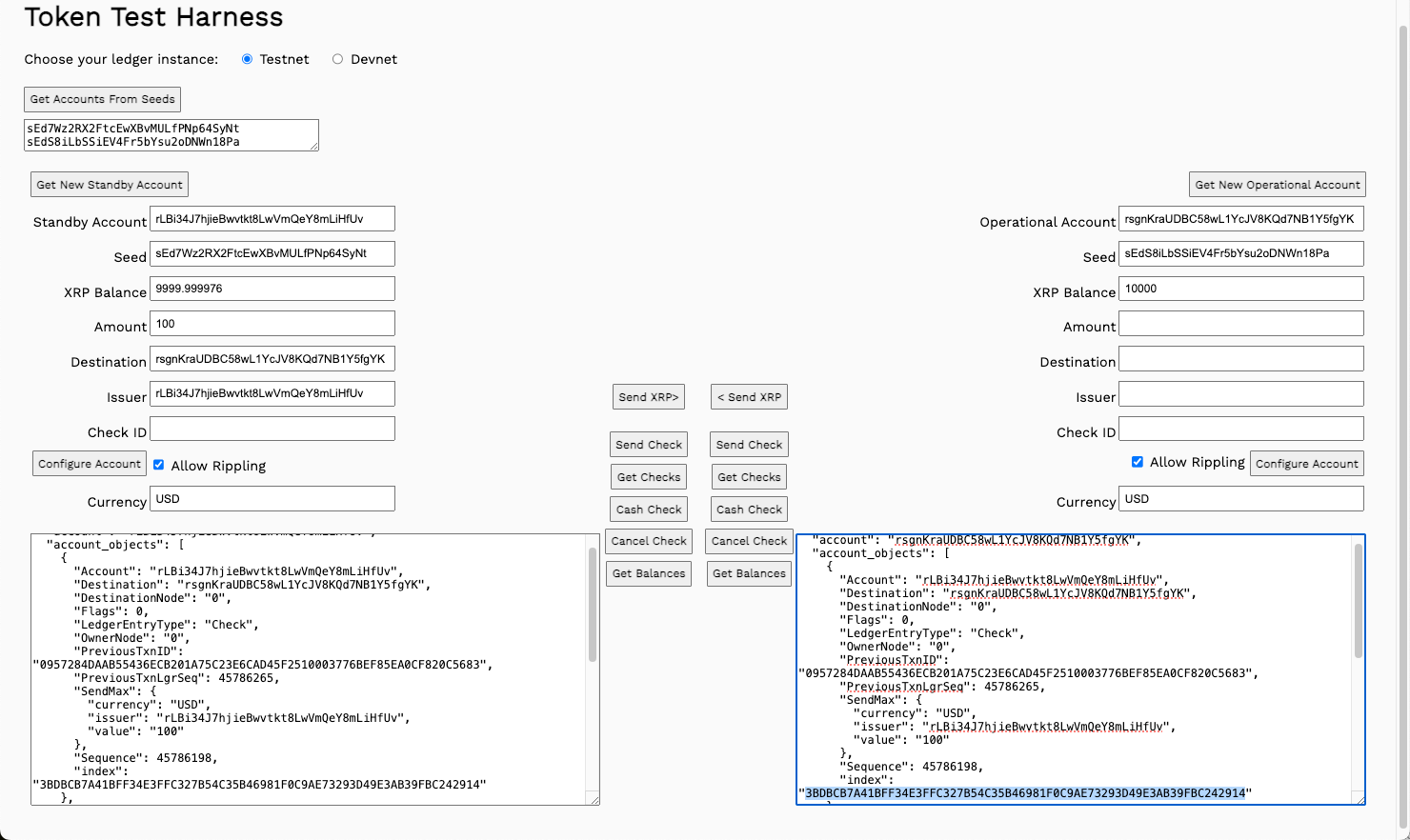

Get Checks
Click Get Checks to get a list of the current checks you have sent or received. To uniquely identify a check (for existence, when cashing a check), capture the index value for the check.

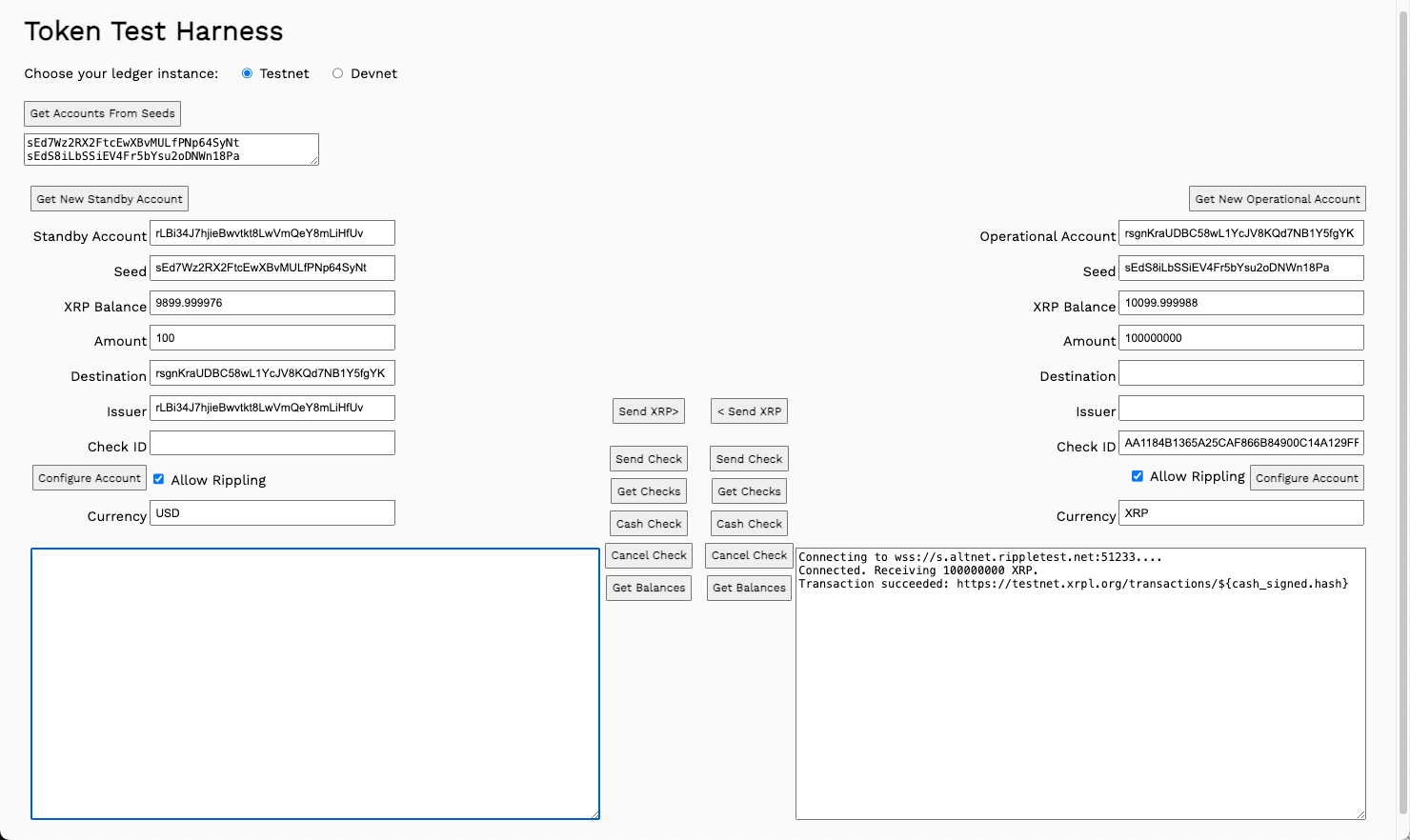

Cash Check
To cash a check you have received:
- Enter the Check ID (index value).
- Enter the Amount you want to collect, up to the full amount of the check.
- Enter the currency code. a. If you cashing a check for XRP, enter XRP in the Currency field. b. If you are cashing a check for an issued currency token: 1. Enter the Issuer of the token. 2. Enter the Currency code for the token.
- Click Cash Check.
Get Balances
Click Get Balances to get a list of obligations and assets for each account.
Cancel Check
To cancel a check you have previously sent to another account.
- Enter the Check ID (index value).
- Click Cancel Check.
Code Walkthrough
You can download the Quickstart Samples{.github-code-download} in the source repository for this website.
ripplex10-check.js
sendCheck()
Connect to the XRP ledger.
async function sendCheck() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
standbyResultField.value = results
await client.connect()
results += '\nConnected.'
standbyResultField.value = results
Instantiate the account wallets.
const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
Create the check_amount variable, based on the standby amount field.
var check_amount = standbyAmountField.value
If the currency is anything but XRP, it's an issued currency. Update the check_amount variable to include the currency and issuer fields.
if (standbyCurrencyField.value != "XRP") {
check_amount = {
"currency": standbyCurrencyField.value,
"value": standbyAmountField.value,
"issuer": standby_wallet.address
}
}
Define the CheckCreate transaction.
const send_check_tx = {
"TransactionType": "CheckCreate",
"Account": standby_wallet.address,
"SendMax": check_amount,
"Destination": standbyDestinationField.value
}
Prepare and sign the transaction.
const check_prepared = await client.autofill(send_check_tx)
const check_signed = standby_wallet.sign(check_prepared)
results += 'Sending ' + check_amount + ' ' + standbyCurrencyField + ' to ' +
standbyDestinationField.value + '...'
standbyResultField.value = results
Submit the transaction to the XRP Ledger and wait for the response.
const check_result = await client.submitAndWait(check_signed.tx_blob)
Report the results
if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${check_signed.hash}'
standbyResultField.value = JSON.stringify(check_result.result, null, 2)
} else {
results += 'Transaction failed: See JavaScript console for details.'
standbyResultField.value = results
throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
}
Update the XRP balance fields.
standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
Disconnect from the XRP Ledger.
client.disconnect()
} // end of sendCheck()
getChecks()
async function getChecks() {
Connect to the XRP Ledger.
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
standbyResultField.value = results
await client.connect()
results += '\nConnected.'
standbyResultField.value = results
results= "\nGetting standby account checks...\n"
Define and send the account_objects request, specifying check objects.
const check_objects = await client.request({
"id": 5,
"command": "account_objects",
"account": standbyAccountField.value,
"ledger_index": "validated",
"type": "check"
})
Report the results.
standbyResultField.value = JSON.stringify(check_objects.result, null, 2)
Disconnect from the XRP Ledger.
client.disconnect()
} // End of getChecks()
cashCheck()
Connect to the XRP Ledger and instantiate the account wallets.
async function cashCheck() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
standbyResultField.value = results
await client.connect()
results += '\nConnected.'
standbyResultField.value = results
const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
Set the check_amount variable to the value in the Amount field.
var check_amount = standbyAmountField.value
If the Currency is anything other than XRP, the check is for an issued currency. Redefine the variable to include the currency and issuer for the token.
if (standbyCurrencyField.value != "XRP") {
check_amount = {
"value": standbyAmountField.value,
"currency": standbyCurrencyField.value,
"issuer": standbyIssuerField.value
}
}
Define the CheckCash transaction.
const cash_check_tx = {
"TransactionType": "CheckCash",
"Account": standby_wallet.address,
"Amount": check_amount,
"CheckID": standbyCheckID.value
}
Prepare and sign the transaction.
const cash_prepared = await client.autofill(cash_check_tx)
const cash_signed = standby_wallet.sign(cash_prepared)
results += ' Receiving ' + standbyAmountField.value + ' ' + standbyCurrencyField.value + '.\n'
standbyResultField.value = results
Submit the transaction and wait for the results.
const check_result = await client.submitAndWait(cash_signed.tx_blob)
Report the results.
if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
standbyResultField.value = results
} else {
results += 'Transaction failed: See JavaScript console for details.'
standbyResultField.value = results
throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
}
Update the XRP balance fields.
standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
Disconnect from the XRP Ledger.
client.disconnect()
} // end of cashCheck()
cancelCheck
Connect to the XRP Ledger and instantiate the account wallets.
async function cancelCheck() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
standbyResultField.value = results
await client.connect()
results += '\nConnected.'
standbyResultField.value = results
const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
Define the CheckCancel transaction.
const cancel_check_tx = {
"TransactionType": "CheckCancel",
"Account": standby_wallet.address,
"CheckID": standbyCheckID.value
}
Prepare and sign the transaction object.
const cancel_prepared = await client.autofill(cancel_check_tx)
const cancel_signed = standby_wallet.sign(cancel_prepared)
results += ' Cancelling check.\n'
standbyResultField.value = results
Submit the transaction and wait for the results.
const check_result = await client.submitAndWait(cancel_signed.tx_blob)
Report the results.
if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
standbyResultField.value = results
} else {
results += 'Transaction failed: See JavaScript console for details.'
standbyResultField.value = results
throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
}
Update the XRP balance fields.
standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
Disconnect from the XRP Ledger.
client.disconnect()
} // end of cancelCheck()
Reciprocal functions for the Operational account.
// *******************************************************
// ************ Operational Send Check *******************
// *******************************************************
async function opSendCheck() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
operationalResultField.value = results
await client.connect()
results += '\nConnected.'
operationalResultField.value = results
const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
const issue_quantity = operationalAmountField.value
var check_amount = operationalAmountField.value
if (operationalCurrencyField.value != "XRP") {
check_amount = {
"currency": operationalCurrencyField.value,
"value": operationalAmountField.value,
"issuer": operational_wallet.address
}
}
const send_check_tx = {
"TransactionType": "CheckCreate",
"Account": operational_wallet.address,
"SendMax": check_amount,
"Destination": operationalDestinationField.value
}
const check_prepared = await client.autofill(send_check_tx)
const check_signed = operational_wallet.sign(check_prepared)
results += '\nSending check to ' +
operationalDestinationField.value + '...'
operationalResultField.value = results
const check_result = await client.submitAndWait(check_signed.tx_blob)
if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${check_signed.hash}'
operationalResultField.value = JSON.stringify(check_result.result, null, 2)
} else {
results += 'Transaction failed: See JavaScript console for details.'
operationalResultField.value = results
throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
}
standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
client.disconnect()
} // end of opSendCheck()
// *******************************************************
// ************ Operational Get Checks *******************
// *******************************************************
async function opGetChecks() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
operationalResultField.value = results
await client.connect()
results += '\nConnected.'
operationalResultField.value = results
results= "\nGetting standby account checks...\n"
const check_objects = await client.request({
"id": 5,
"command": "account_objects",
"account": operationalAccountField.value,
"ledger_index": "validated",
"type": "check"
})
operationalResultField.value = JSON.stringify(check_objects.result, null, 2)
client.disconnect()
} // End of opGetChecks()
// *******************************************************
// ************* Operational Cash Check ******************
// *******************************************************
async function opCashCheck() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
operationalResultField.value = results
await client.connect()
results += '\nConnected.'
operationalResultField.value = results
const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
var check_amount = operationalAmountField.value
if (operationalCurrencyField.value != "XRP") {
check_amount = {
"value": operationalAmountField.value,
"currency": operationalCurrencyField.value,
"issuer": operationalIssuerField.value
}
}
const cash_check_tx = {
"TransactionType": "CheckCash",
"Account": operational_wallet.address,
"Amount": check_amount,
"CheckID": operationalCheckIDField.value
}
const cash_prepared = await client.autofill(cash_check_tx)
const cash_signed = operational_wallet.sign(cash_prepared)
results += ' Receiving ' + operationalAmountField.value + ' ' + operationalCurrencyField.value + '.\n'
operationalResultField.value = results
const check_result = await client.submitAndWait(cash_signed.tx_blob)
if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
operationalResultField.value = results
} else {
results += 'Transaction failed: See JavaScript console for details.'
operationalResultField.value = results
throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
}
standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
client.disconnect()
}
// end of opCashCheck()
// *******************************************************
// ************* Operational Cancel Check ****************
// *******************************************************
async function opCancelCheck() {
let net = getNet()
const client = new xrpl.Client(net)
results = 'Connecting to ' + getNet() + '....'
operationalResultField.value = results
await client.connect()
results += '\nConnected.'
operationalResultField.value = results
const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
const cancel_check_tx = {
"TransactionType": "CheckCancel",
"Account": operational_wallet.address,
"CheckID": operationalCheckIDField.value
}
const cancel_prepared = await client.autofill(cancel_check_tx)
const cancel_signed = operational_wallet.sign(cancel_prepared)
results += ' Cancelling check.\n'
operationalResultField.value = results
const check_result = await client.submitAndWait(cancel_signed.tx_blob)
if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
operationalResultField.value = results
} else {
results += 'Transaction failed: See JavaScript console for details.'
operationalResultField.value = results
throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
}
standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
client.disconnect()
} // end of cancelCheck()
10.check.html
<html>
<head>
<title>Token Test Harness</title>
<link href='https://fonts.googleapis.com/css?family=Work Sans' rel='stylesheet'>
<style>
body{font-family: "Work Sans", sans-serif;padding: 20px;background: #fafafa;}
h1{font-weight: bold;}
input, button {padding: 6px;margin-bottom: 8px;}
button{font-weight: bold;font-family: "Work Sans", sans-serif;}
td{vertical-align: middle;}
</style>
<script src='https://unpkg.com/xrpl@2.7.0/build/xrpl-latest-min.js'></script>
<script src='ripplex1-send-xrp.js'></script>
<script src='ripplex2-send-currency.js'></script>
<script src='ripplex10-check.js'></script>
</head>
<!-- ************************************************************** -->
<!-- ********************** The Form ****************************** -->
<!-- ************************************************************** -->
<body>
<h1>Token Test Harness</h1>
<form id="theForm">
Choose your ledger instance:
<input type="radio" id="tn" name="server"
value="wss://s.altnet.rippletest.net:51233" checked>
<label for="testnet">Testnet</label>
<input type="radio" id="dn" name="server"
value="wss://s.devnet.rippletest.net:51233">
<label for="devnet">Devnet</label>
<br/><br/>
<button type="button" onClick="getAccountsFromSeeds()">Get Accounts From Seeds</button>
<br/>
<textarea id="seeds" cols="40" rows= "2"></textarea>
<br/><br/>
<table>
<tr valign="top">
<td>
<table>
<tr valign="top">
<td>
<td>
<button type="button" onClick="getAccount('standby')">Get New Standby Account</button>
<table>
<tr valign="top">
<td align="right">
Standby Account
</td>
<td>
<input type="text" id="standbyAccountField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Public Key
</td>
<td>
<input type="text" id="standbyPubKeyField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Private Key
</td>
<td>
<input type="text" id="standbyPrivKeyField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Seed
</td>
<td>
<input type="text" id="standbySeedField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
XRP Balance
</td>
<td>
<input type="text" id="standbyBalanceField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Amount
</td>
<td>
<input type="text" id="standbyAmountField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Destination
</td>
<td>
<input type="text" id="standbyDestinationField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Issuer
</td>
<td>
<input type="text" id="standbyIssuerField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Check ID
</td>
<td>
<input type="text" id="standbyCheckID" size="40"></input>
<br>
</td>
</tr>
<tr valign="top">
<td><button type="button" onClick="configureAccount('standby',document.querySelector('#standbyDefault').checked)">Configure Account</button></td>
<td>
<input type="checkbox" id="standbyDefault" checked="true"/>
<label for="standbyDefault">Allow Rippling</label>
</td>
</tr>
<tr>
<td align="right">
Currency
</td>
<td>
<input type="text" id="standbyCurrencyField" size="40" value="USD"></input>
</td>
</tr>
</table>
<p align="left">
<textarea id="standbyResultField" cols="80" rows="20" ></textarea>
</p>
</td>
</td>
<td>
<table>
<tr valign="top">
<td align="center" valign="top">
<button type="button" onClick="sendXRP()">Send XRP></button>
<br/><br/>
<button type="button" onClick="sendCheck()">Send Check</button>
<br/>
<button type="button" onClick="getChecks()">Get Checks</button>
<br/>
<button type="button" onClick="cashCheck()">Cash Check</button>
<br/>
<button type="button" onClick="cancelCheck()">Cancel Check</button>
<br/>
<button type="button" onClick="getBalances()">Get Balances</button>
</td>
</tr>
</td>
</tr>
</table>
</td>
</tr>
</table>
</td>
<td>
<table>
<tr>
<td>
<td>
<table>
<tr>
<td align="center" valign="top">
<button type="button" onClick="oPsendXRP()">< Send XRP</button>
<br/><br/>
<button type="button" onClick="opSendCheck()">Send Check</button>
<br/>
<button type="button" onClick="opGetChecks()">Get Checks</button>
<br/>
<button type="button" onClick="opCashCheck()">Cash Check</button>
<br/>
<button type="button" onClick="opCancelCheck()">Cancel Check</button>
<br/>
<button type="button" onClick="getBalances()">Get Balances</button>
</td>
<td valign="top" align="right">
<button type="button" onClick="getAccount('operational')">Get New Operational Account</button>
<table>
<tr valign="top">
<td align="right">
Operational Account
</td>
<td>
<input type="text" id="operationalAccountField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Public Key
</td>
<td>
<input type="text" id="operationalPubKeyField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Private Key
</td>
<td>
<input type="text" id="operationalPrivKeyField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Seed
</td>
<td>
<input type="text" id="operationalSeedField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
XRP Balance
</td>
<td>
<input type="text" id="operationalBalanceField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Amount
</td>
<td>
<input type="text" id="operationalAmountField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Destination
</td>
<td>
<input type="text" id="operationalDestinationField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Issuer
</td>
<td>
<input type="text" id="operationalIssuerField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td align="right">
Check ID
</td>
<td>
<input type="text" id="operationalCheckIDField" size="40"></input>
<br>
</td>
</tr>
<tr>
<td>
</td>
<td align="right">
<input type="checkbox" id="operationalDefault" checked="true"/>
<label for="operationalDefault">Allow Rippling</label>
<button type="button" onClick="configureAccount('operational',document.querySelector('#operationalDefault').checked)">Configure Account</button>
</td>
</tr>
<tr>
<td align="right">
Currency
</td>
<td>
<input type="text" id="operationalCurrencyField" size="40" value="USD"></input>
</td>
</tr>
</table>
<p align="right">
<textarea id="operationalResultField" cols="80" rows="20" ></textarea>
</p>
</td>
</td>
</tr>
</td>
</tr>
</table>
</td>
</tr>
</table>
</td>
</tr>
</table>
</form>
</body>
</html>
