Shard Downloader

Overview

This document describes mechanics of the SSLHTTPDownloader, a class that performs the task of downloading shards from remote web servers via SSL HTTP. The downloader utilizes a strand (boost::asio::io_service::strand) to ensure that downloads are never executed concurrently. Hence, if a download is in progress when another download is initiated, the second download will be queued and invoked only when the first download is completed.

Motivation

In March 2020 the downloader was modified to include some key features:

• The ability to stop downloads during a graceful shutdown.
• The ability to resume partial downloads after a crash or shutdown.

This document was created to document the changes introduced by this change.

Classes

Much of the shard downloading process concerns the following classes:

• SSLHTTPDownloader

  This is a generic class designed for serially executing downloads via HTTP SSL.

• ShardArchiveHandler

  This class uses the SSLHTTPDownloader to fetch shards from remote web servers. Additionally, the archive handler performs sanity checks on the downloaded files and imports the validated files into the local shard store.

  The ShardArchiveHandler exposes a simple public interface:

  /** Add an archive to be downloaded and imported.
  @param shardIndex the index of the shard to be imported.
  @param url the location of the archive.
  @return `true` if successfully added.
  @note Returns false if called while downloading.
  */
  bool
  add(std::uint32_t shardIndex, std::pair<parsedURL, std::string>&& url);

  /** Starts downloading and importing archives. */
  bool
  start();


  When a client submits a download_shard command via the RPC interface, each of the requested files is registered with the handler via the add method. After all the files have been registered, the handler's start method is invoked, which in turn creates an instance of the SSLHTTPDownloader and begins the first download. When the download is completed, the downloader invokes the handler's complete method, which will initiate the download of the next file, or simply return if there are no more downloads to process. When complete is invoked with no remaining files to be downloaded, the handler and downloader are not destroyed automatically, but persist for the duration of the application to assist with graceful shutdowns by Stoppable.

• DatabaseBody

  This class defines a custom message body type, allowing an http::response_parser to write to an SQLite database rather than to a flat file. This class is discussed in further detail in the Recovery section.

Graceful Shutdowns & Recovery

This section describes in greater detail how the shutdown and recovery features of the downloader are implemented in C++ using the boost::asio framework.

Member Variables:

The variables shown here are members of the SSLHTTPDownloader class and will be used in the following code examples.

using boost::asio::ssl::stream;
using boost::asio::ip::tcp::socket;

stream<socket>          stream_;
std::condition_variable c_;
std::atomic<bool>       cancelDownloads_;

Graceful Shutdowns

Thread 1:

A graceful shutdown begins when the onStop() method of the ShardArchiveHandler is invoked:

void
ShardArchiveHandler::onStop()
{
    std::lock_guard<std::mutex> lock(m_);

    if (downloader_)
    {
        downloader_->onStop();
        downloader_.reset();
    }

    stopped();
}

Inside of SSLHTTPDownloader::onStop(), if a download is currently in progress, the cancelDownloads_ member variable is set and the thread waits for the download to stop:

void
SSLHTTPDownloader::onStop()
{
    std::unique_lock lock(m_);

    cancelDownloads_ = true;

    if(sessionActive_)
    {
        // Wait for the handler to exit.
        c_.wait(lock,
            [this]()
            {
                return !sessionActive_;
            });
    }
}

Thread 2:

The graceful shutdown is realized when the thread executing the download polls cancelDownloads_ after this variable has been set to true. Polling occurs while the file is being downloaded, in between calls to async_read_some(). The stop takes effect when the socket is closed and the handler function ( do_session() ) is exited.

void SSLHTTPDownloader::do_session()
{

   // (Connection initialization logic) . . .


   // (In between calls to async_read_some):
   if(cancelDownloads_.load())
   {
       close(p);
       return exit();
   }

   // . . .

   break;
}

Recovery

Persisting the current state of both the archive handler and the downloader is achieved by leveraging an SQLite database rather than flat files, as the database protects against data corruption that could result from a system crash.

ShardArchiveHandler

Although SSLHTTPDownloader is a generic class that could be used to download a variety of file types, currently it is used exclusively by the ShardArchiveHandler to download shards. In order to provide resilience, the ShardArchiveHandler will use an SQLite database to preserve its current state whenever there are active, paused, or queued downloads. The shard_db section in the configuration file allows users to specify the location of the database to use for this purpose.

SQLite Table Format

Index	URL
1	https://example.com/1.tar.lz4
2	https://example.com/2.tar.lz4
5	https://example.com/5.tar.lz4

SSLHTTPDownloader

While the archive handler maintains a list of all partial and queued downloads, the SSLHTTPDownloader stores the raw bytes of the file currently being downloaded. The partially downloaded file will be represented as one or more BLOB entries in an SQLite database. As the maximum size of a BLOB entry is currently limited to roughly 2.1 GB, a 5 GB shard file for instance will occupy three database entries upon completion.

SQLite Table Format

Since downloads execute serially by design, the entries in this table always correspond to the contents of a single file.

Bytes	Size	Part
0x...	2147483647	0
0x...	2147483647	1
0x...	705032706	2

Config File Entry

The download_path field of the shard_db entry is used to determine where to store the recovery database. If this field is omitted, the path field will be used instead.

# This is the persistent datastore for shards. It is important for the health
# of the ripple network that rippled operators shard as much as practical.
# NuDB requires SSD storage. Helpful information can be found here
# https://ripple.com/build/history-sharding
[shard_db]
type=NuDB
path=/var/lib/rippled/db/shards/nudb
download_path=/var/lib/rippled/db/shards/
max_size_gb=50

Resuming Partial Downloads

When resuming downloads after a shutdown, crash, or other interruption, the SSLHTTPDownloader will utilize the range field of the HTTP header to download only the remainder of the partially downloaded file.

auto downloaded = getPartialFileSize();
auto total = getTotalFileSize();

http::request<http::file_body> req {http::verb::head,
  target,
  version};

if (downloaded < total)
{
  // If we already downloaded 1000 bytes to the database,
  // the range header will look like:
  // Range: "bytes=1000-"
  req.set(http::field::range, "bytes=" + to_string(downloaded) + "-");
}
else if(downloaded == total)
{
  // Download is already complete. (Interruption must
  // have occurred after file was downloaded but before
  // the state file was updated.)
}
else
{
  // The size of the partially downloaded file exceeds
  // the total download size. Error condition. Handle
  // appropriately.
}

DatabaseBody

Previously, the SSLHTTPDownloader leveraged an http::response_parser instantiated with an http::file_body. The file_body class declares a nested type, reader, which does the task of writing HTTP message payloads (constituting a requested file) to the filesystem. In order for the http::response_parser to interface with the database, we implement a custom body type that declares a nested reader type which has been outfitted to persist octects received from the remote host to a local SQLite database. The code snippet below illustrates the customization points available to user-defined body types:

/// Defines a Body type
struct body
{
    /// This determines the return type of the `message::body` member function
    using value_type = ...;

    /// An optional function, returns the body's payload size (which may be zero)
    static
    std::uint64_t
    size(value_type const& v);

    /// The algorithm used for extracting buffers
    class reader;

    /// The algorithm used for inserting buffers
    class writer;
}

Note that the DatabaseBody class is specifically designed to work with asio and follows asio conventions.

The method invoked to write data to the filesystem (or SQLite database in our case) has the following signature:

std::size_t
body::reader::put(ConstBufferSequence const& buffers, error_code& ec);

Sequence Diagram

This sequence diagram demonstrates a scenario wherein the ShardArchiveHandler leverages the state persisted in the database to recover from a crash and resume the requested downloads.

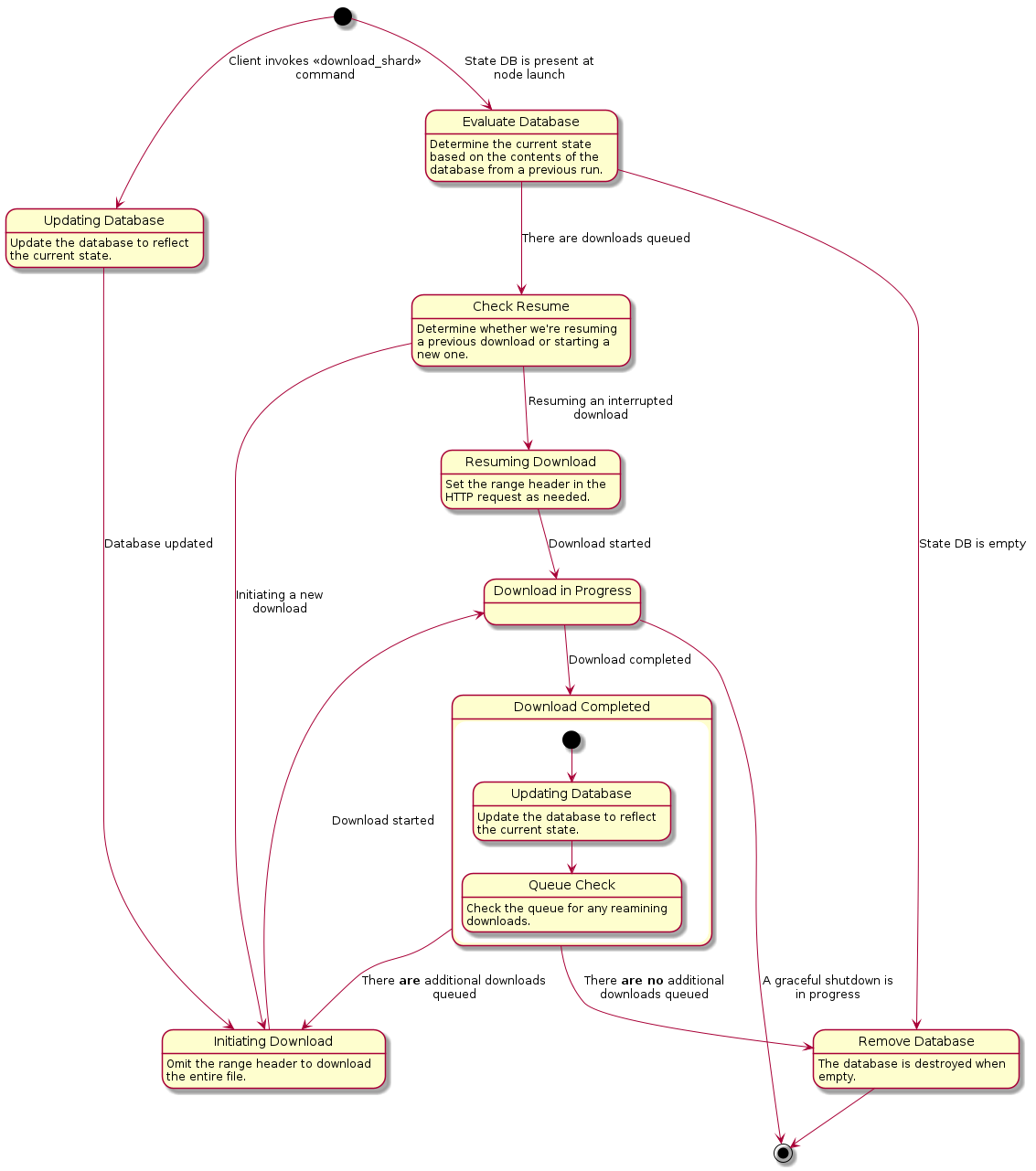

State Diagram

This diagram illustrates the various states of the Shard Downloader module.
